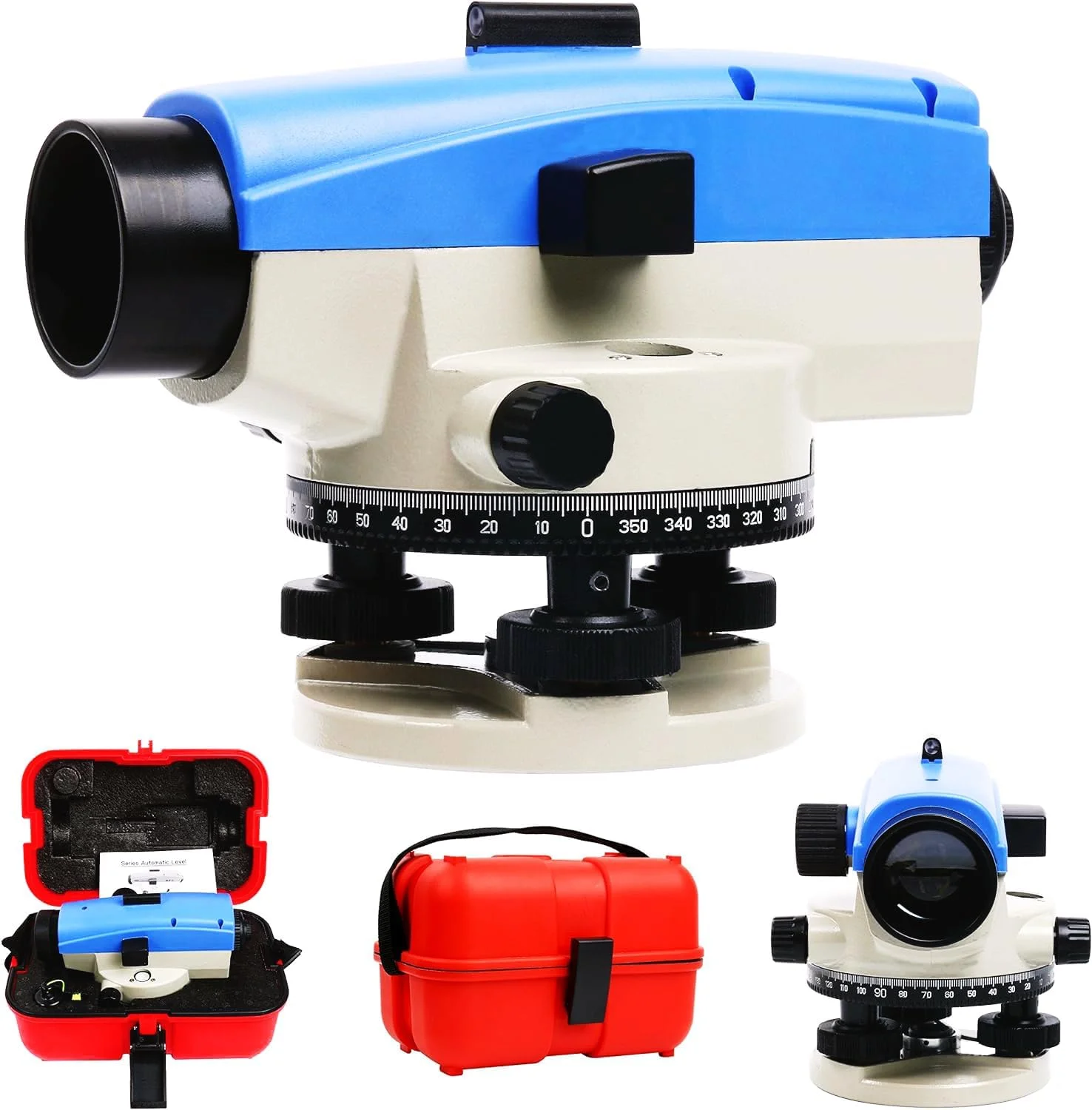

LGLA® 32X High-Magnification Automatic Optical Dumpy Level Surveying Instrument

Civil engineering grade automatic optical level featuring 32X magnification and a 38mm large clear aperture objective lens for razor-sharp imagery over extended baseline distances. Equipped with an ultra-responsive magnetically dampened wire-hung compensator that automatically levels line of sight within ±15 arc-minutes, delivering double-run leveling accuracy of 1.0mm per kilometer.

Technical Specifications

Brand : LGLA®

Trademark : No.66725645 (Class 9 Registered)

Model Code : LGLA-AOL32

Magnification : 32X High-Power Optical System

Leveling Accuracy : 1.0 mm / 1 km Double Run Leveling

Objective Aperture : 38 mm Multi-Coated Clear Lens

Compensator Type : Magnetic Damped Pendulum Compensator

Compensator Range : ±15' Working Range with 0.3" Setting Accuracy

Horizontal Circle : 360° Graduated Scale (1° increments)

Ingress Protection : IP54 All-Weather Sealed Metallic Chassis

Tripod Thread : Standard 5/8"-11 Surveying Tripod Thread

Standard Kit : Plumb Bob, Adjusting Pins, Hex Wrench, Heavy Carry Case

Lead Time : 3-7 Days (Stock) / 15 Days (Custom OEM)

MOQ : Negotiable / Wholesale Direct
